Description

Quiet Enclosed 50 HP Floor Mounted Air Cooled Rotary Screw Air Compressor; 230/460 Volt, 3 Phase

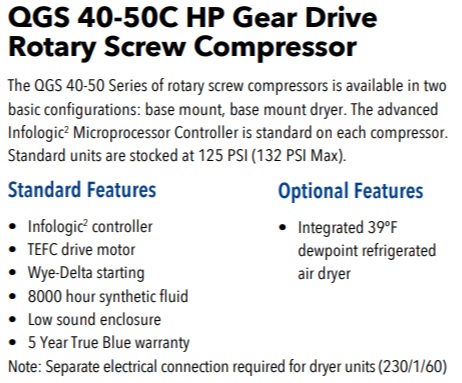

QGS Standard Premium Features:

• Manufacturer’s 5-Year True Blue Warranty
• TEFC Drive Motor
• TEFC Fan Motor
• Factory-filled 8,000 hour QuinSyn-Plus Fluid
• NEMA 3 Electrical Rating
• Low Sound Enclosure
• Wye Delta Reduced Voltage Starter
• Small Footprint
• Heavy Duty Intake Filter

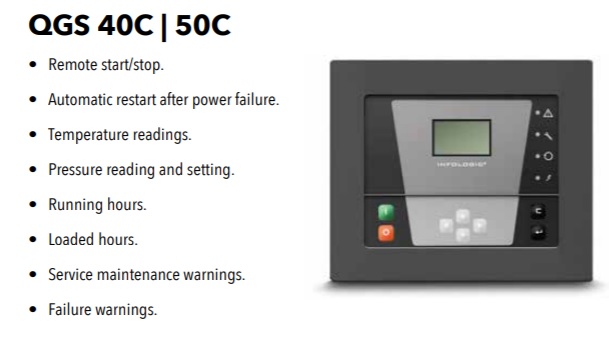

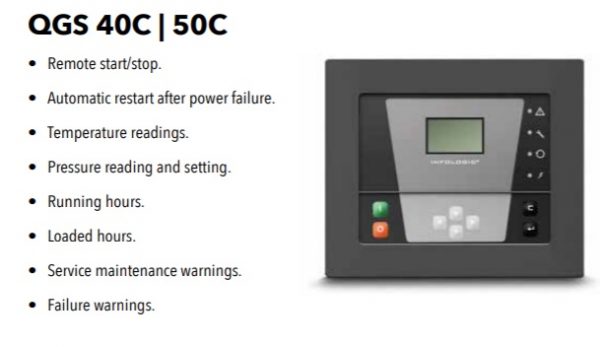

• INFOLOGIC CONTROL – Performance Trending
• INFOLOGIC CONTROL – Intelligent Unload Cycle
• INFOLOGIC CONTROL – Load/No Load with Auto Dual Control

Specifications:

• HP 50 hp
• Flow (ACFM) 208
• Full Load Pressure (PSIG) 125
• Max Pressure (PSIG) 132
• Min Pressure (PSIG) 117
• Package Discharge Size 1 1/4″ NPT
• Max Ambient 115 F
• Min Ambient 32 F
• Fluid Capacity 4.5 gal
• Sound 69 dBA
• Weight (Lbs.) 1418
• Dimentions (LxWxH) 53x37x62

True Blue Warranty

Only the World’s Finest Compressors come with and industry leading warranty!  Quincy Compressor offers 5-year coverage, True Blue Warranty*

Other companies say they offer the best machine, but only Quincy can prove it.  We back our most reliable air compressor with an industry leading warranty….

• 5-year Airend Warranty
• 5-year Drive Motor
• 5-year Heat Exchanger
• 5-year Separator Tank

*Note:  Refer to the Instruction Manual and the Warranty Policy Statement for a full list of recommended service intervals and requirements.
